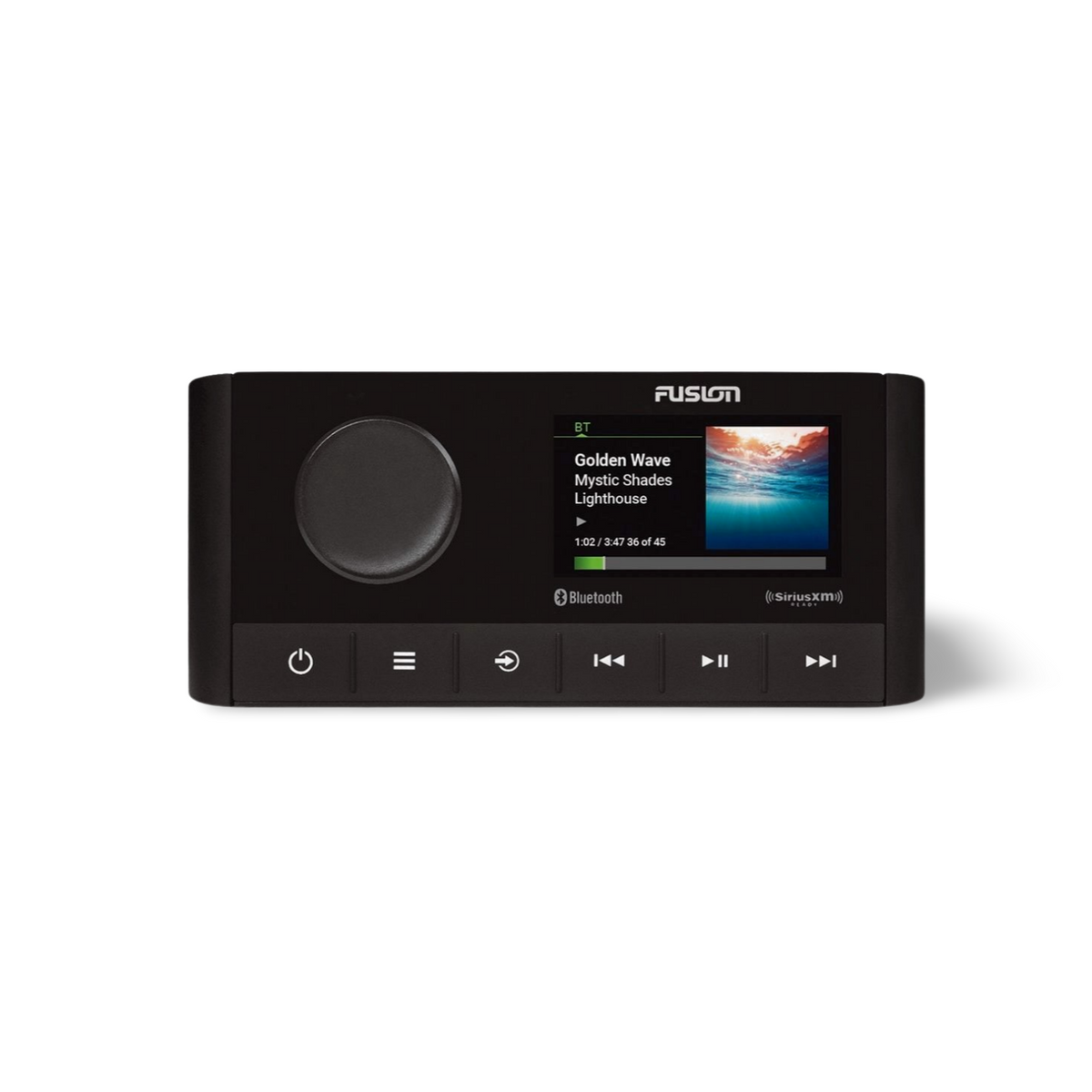

So far, no FUSION device has been as successful as the MS-RA205, and its successors could only be mounted with an adapter plate. The MS-RA210 fits into the existing cutout of the MS-RA205 and features the latest technology.
The marine radio is designed according to the latest standards and is suitable for 2 speaker zones. Album art from compatible Apple and Android devices is also displayed on the 2.7" color display. Via the Bluetooth function, you can stream and remotely control the radio using the free app. An update via Bluetooth is uncomplicated. Via the NMEA2000 connection, it can be connected to the onboard network, and the radio can then be remotely controlled via a plotter (check compatibility).
The DSP function optimizes the sound of connected FUSION speakers and amplifiers. With the ANT function, the wireless MS-ARX70 remote control can be connected, and the radio can be operated via the Garmin Quatix5 watch. With the optional DAB100 adapter and antenna, the radio will also play existing DAB stations within range. USB. An external source can be played via the radio using the AUX-IN connection. External dimensions W157xH68 mm, installation dimensions W130xH50xT155 mm, color black
Product Specifications
| Display |
2.7" Color LCD Display |
| Sources |
AM / FM / Bluetooth / USB Audio / iPhone / iPod / AUX / MTP / SiriusXM-Ready (USA only, requires optional SiriusXM Connect Vehicle Tuner) / DAB+ ready (Europe and Australia only) Note: SiriusXM and DAB+ do not support traffic or weather. |
| Digital Signal Processing (DSP) |
Yes |
| Fusion speaker, subwoofer, and amplifier profiles pre-configured via DSP |
Yes |
| Fusion-Link Control (Wireless) |
Yes |
| Wireless Bluetooth Technology |
Bluetooth audio streaming, music control (via devices compatible with A2DP/AVRCP 1.3 Bluetooth protocols) |
| SiriusXM-Ready |
Yes |
| ANT Technology |
Yes |
| NMEA 2000 (Control via MFD - Fusion-Link) |
Yes |
| Works with NRX remotes |
Yes |
| Fits DIN cutout |
Yes - requires adapter plate |
| Water Rating (IPX Rating) |
IPX6 and IPX7 from the front panel when correctly installed |
| Internal Amplifier |
Class D |
| Peak Power |
200W max. |
| Multilingual User Interface |
Bulgarian / Chinese (Simplified) / Chinese (Traditional) / Croatian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Italian / Japanese / Korean / Norwegian / Polish / Portuguese (BR) / Portuguese (PT) / Slovenian / Spanish / Swedish / Thai / Turkish |
| Auxiliary Inputs |
1 x RCA input (AUX) |
| USB 2.0 Port |
1 x USB 2.0 Port (for phone charging / media playback) |
| AM/FM Radio |
1 x Motorola antenna connection port |
| Speaker Channels |
2 x channels, 1 pair per zone (2 zones amplified) |
| RCA Pre-Out (Left, Right and Subwoofer) |
2 zones (1 x L+R per zone, 1 x Sub per zone - all require external amplification) |
| Operating Voltage |
+10.8 - 16V DC |
| DAB+ Ready |
Fusion DAB+ Module is required (sold separately). Only available if DAB or DAB+ Broadcast is supported. |
| Software Updates |
Available via USB - from the Fusion-Link app on a phone connected via USB or from a USB stick. |
| Dimensions: Length x Height x Depth (Front panel including volume control) |
157mm x 68mm x 22mm |
| Mounting Dimensions: Height x Depth x Depth |
49.8mm x 104.6mm |
| Manufacturer's Warranty: 1 year |
