Part number:
with GHC 50 display: 010-02794-11
without display: 010-00705-97

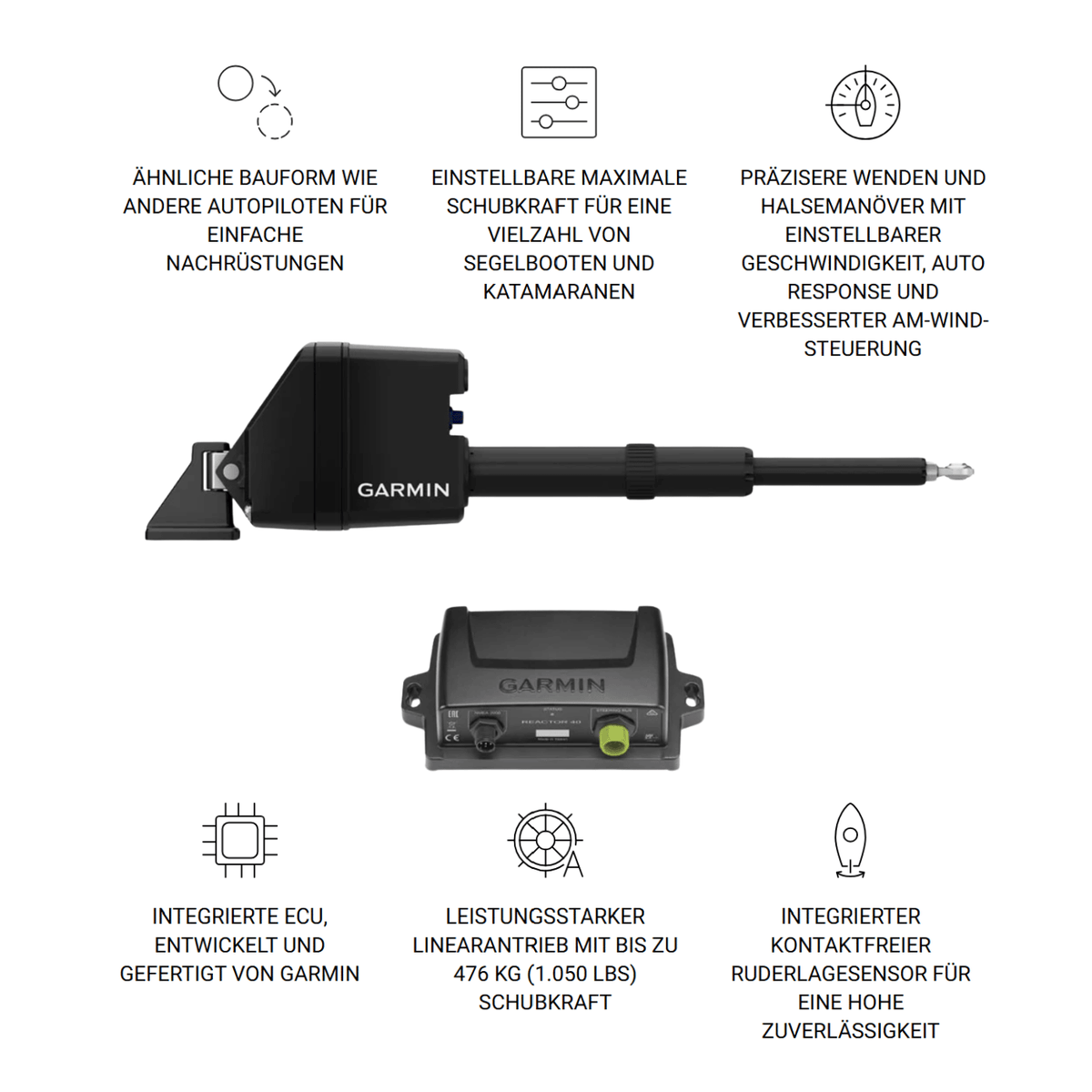

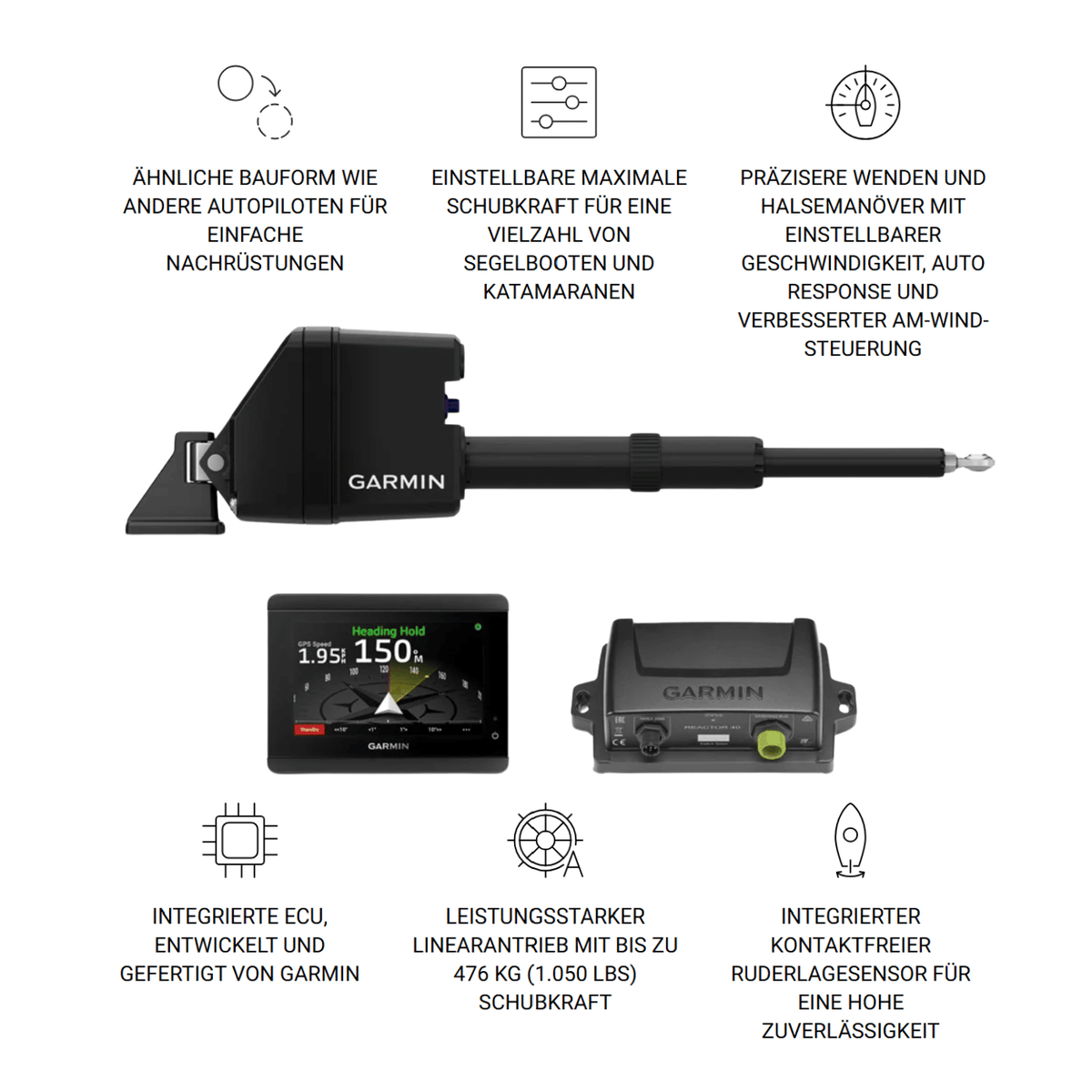

Experience top-class sailing comfort with the Garmin Reactor™ 40 Sail Autopilot base pack including SmartDrive™ with or without GHC™ 50 display. This system combines Garmin's most advanced autopilot technology into a complete package, reliably taking the work off your hands at the helm – whether in light winds or rough seas.
The innovation: SmartDrive™ linear drive The heart of this bundle is the new SmartDrive™ drive unit. As the world's first of its kind, it combines a brushless DC motor directly with the electronic control unit (ECU). This not only drastically reduces the wiring effort during installation but also ensures unparalleled energy efficiency. The integrated, non-contact rudder feedback sensor reduces mechanical wear to an absolute minimum. With a software-adjustable thrust of up to 476 kg, the system is optimally designed for boats with a displacement of up to 15,000 kg.
Maximum precision thanks to 9-axis AHRS The Reactor 40 CCU (Course Computer Unit) uses an advanced solid-state 9-axis AHRS system. It reacts extremely sensitively to sea conditions, rolling, and pitching. This proactively minimizes course deviation, reduces rudder movement, and lowers power consumption. Your crew benefits from an unmatched smooth ride, and you gain maximum course stability.
GHC™ 50: Intuitive touchscreen control
The GHC™ 50 autopilot instrument impresses with its high-resolution, glare-free 5-inch touchscreen. It can be seamlessly integrated into your existing Garmin marine network via NMEA 2000®. You can conveniently operate the autopilot via the display, make course changes, and have all important navigation data in clear view.
Sailing-specific functions In combination with a compatible wind transducer, the Reactor 40 unleashes its full potential: functions such as wind-hold mode (steering to wind angle), automatic tacks and gybes take the toughest work off your hands. This allows you to get the most out of your trip and focus entirely on trimming the sails or the view.
Technical specifications
- Drive (SmartDrive): Brushless motor with integrated ECU
- Max. thrust: 476 kg (1,050 lbs)
- Boat type/size: Sailboats & catamarans up to approx. 45 feet (max. 15,000 kg / 33,000 lbs displacement)
- Voltage: Flexibly compatible with 12 V and 24 V onboard networks
- Sensors (CCU): 9-axis AHRS (solid-state) for precise course keeping
- Display (GHC 50): 5-inch touchscreen, NMEA 2000 compatible, anti-glare
- Rudder feedback sensor: Contactless (integrated directly into the drive)
Scope of delivery
- with or without GHC™ 50 autopilot instrument (display)
- Reactor 40 CCU (Course Computer Unit)
- SmartDrive™ linear drive
- NMEA 2000® drop cable
- NMEA 2000® T-connectors
- Power cable
- Buzzer (alarm)
- CCU mounting kit
- Mounting kit / installation hardware for the drive
- Documentation
